Systems Thinking

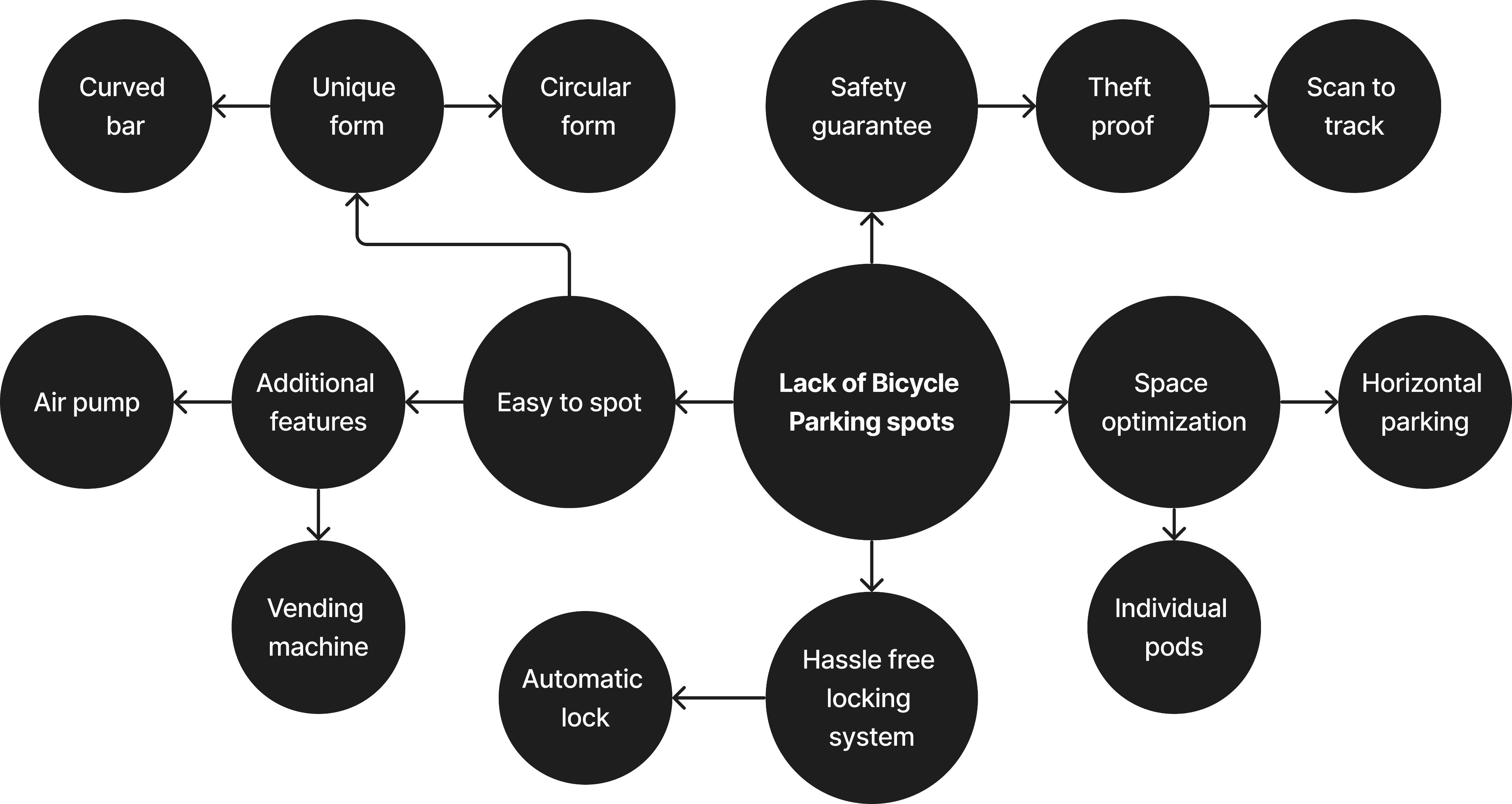

System maps were created to map out requirements and potential solution ideas for concept generation.
The lack of secure bicycle parking* is a serious but often neglected issue that discourages bicycling.
There are very few bicycle parking spots, so cyclists are forced to leave their bikes on the road*, and theft is a big problem.
*Specifically in the context of Bangalore, India (2022)
“A bike is expensive...its just not worth the risk if it gets stolen, so I’d rather just not bike”
“I am always anxious whenever I leave my bike”
“I would love to bike, if only there were places to securely park my bike...”

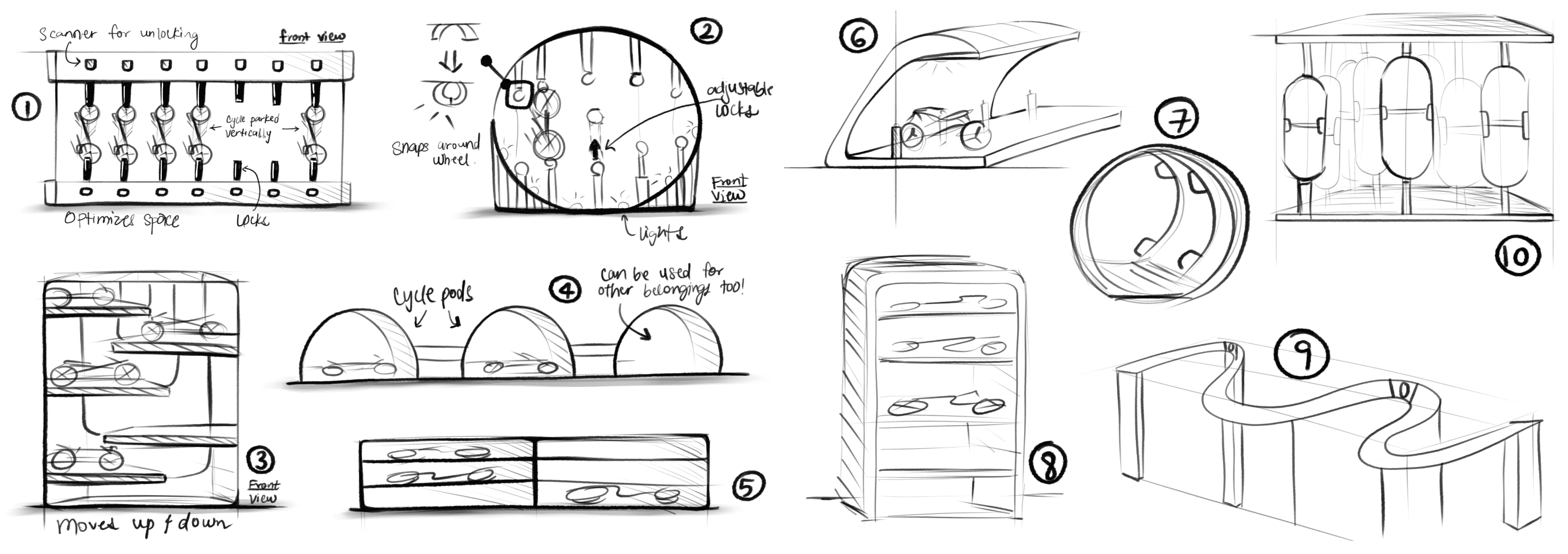

A Few Concepts
Concept Selection
Final Concept

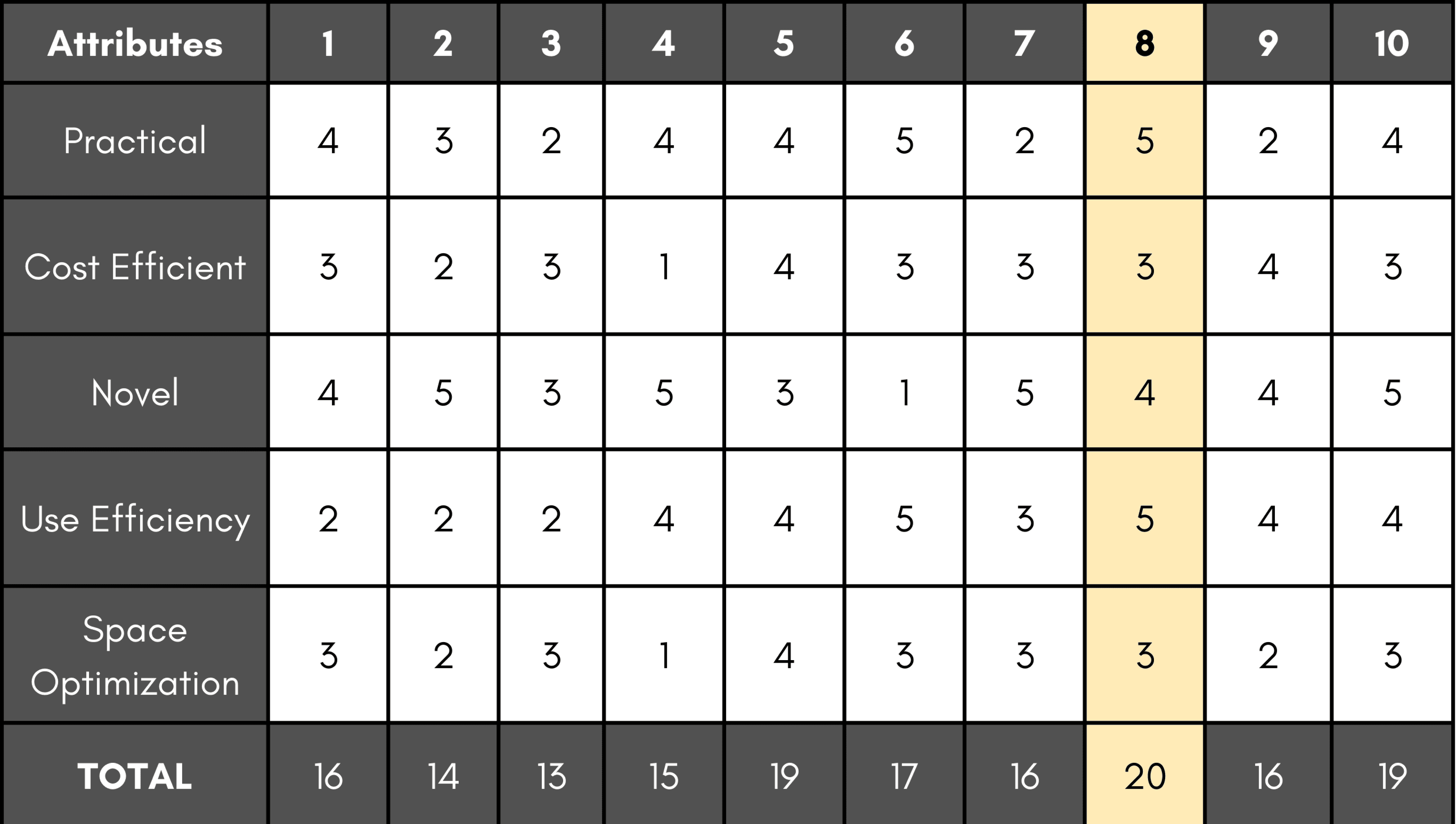

Priority Matrix was used to rate the concepts based on how effective their attributes were. This was used to select the most efficient design.
Concept 8 was chosen using the Priority Matrix.

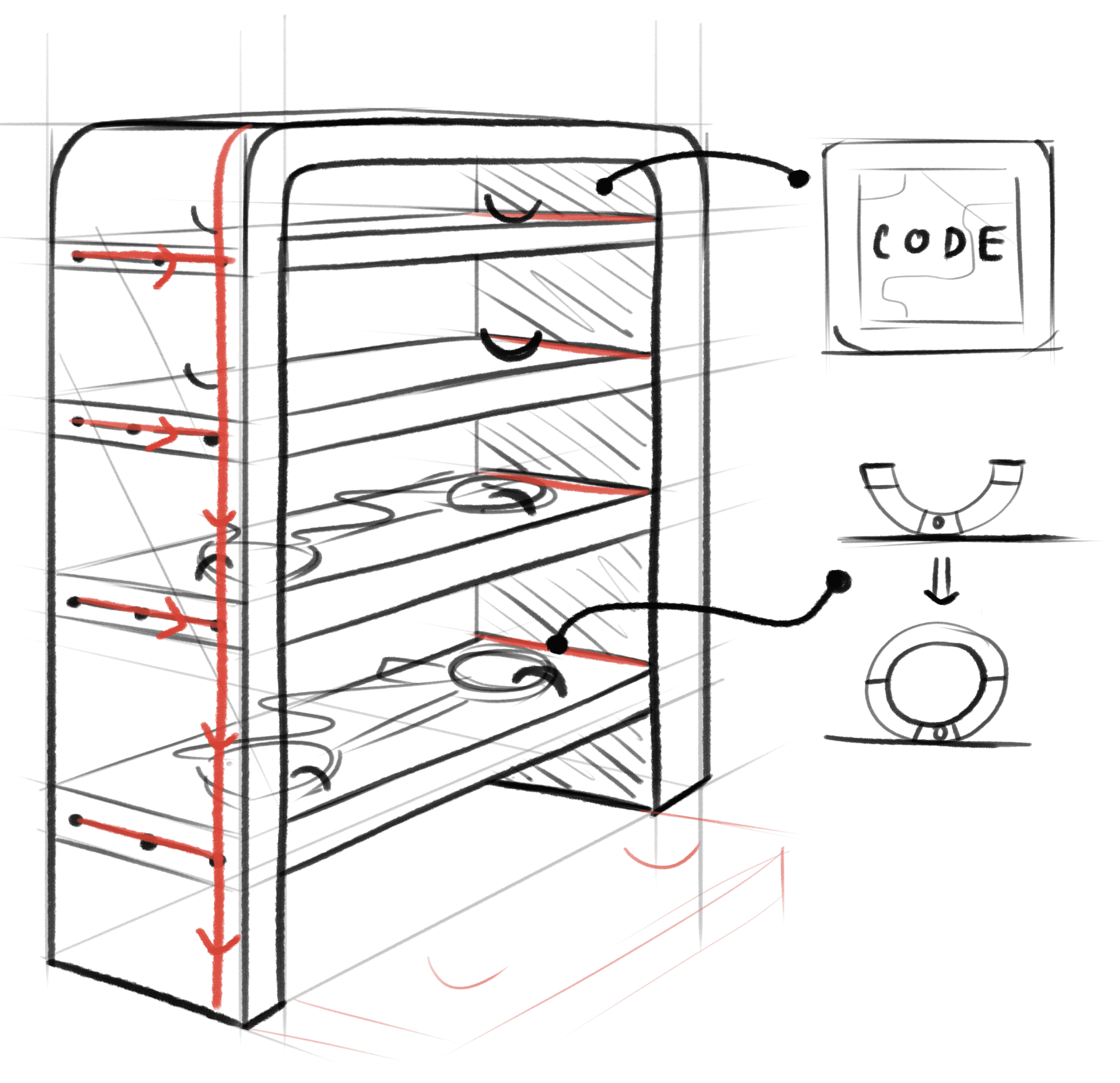

Code on the display that is scanned to get one slab.
Once the code is scanned, user receives an OTP that is used to unlock and lock the bicycle.
The connection to the app allows the user to have real time data about the bicycle state.
If the lock is tampered with, user receives an alert.

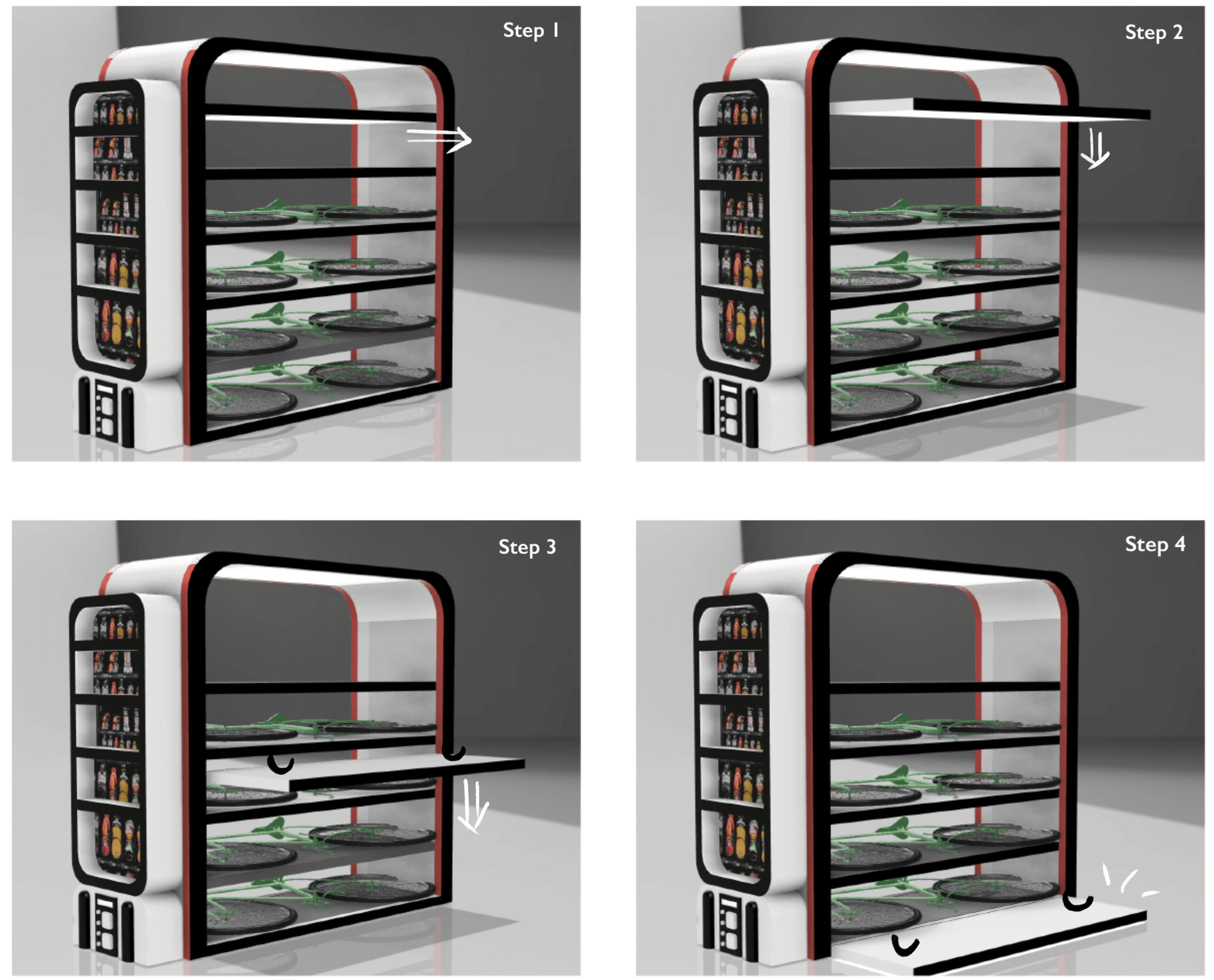

Step 3: The slab moves all the way down.
Step 4: Bicycles can be placed on the slab and the locks snap shut. The slab moves back to its place.
Step 1: The slab slides out once scanned and selected.
Step 2: The slab moves downwards.

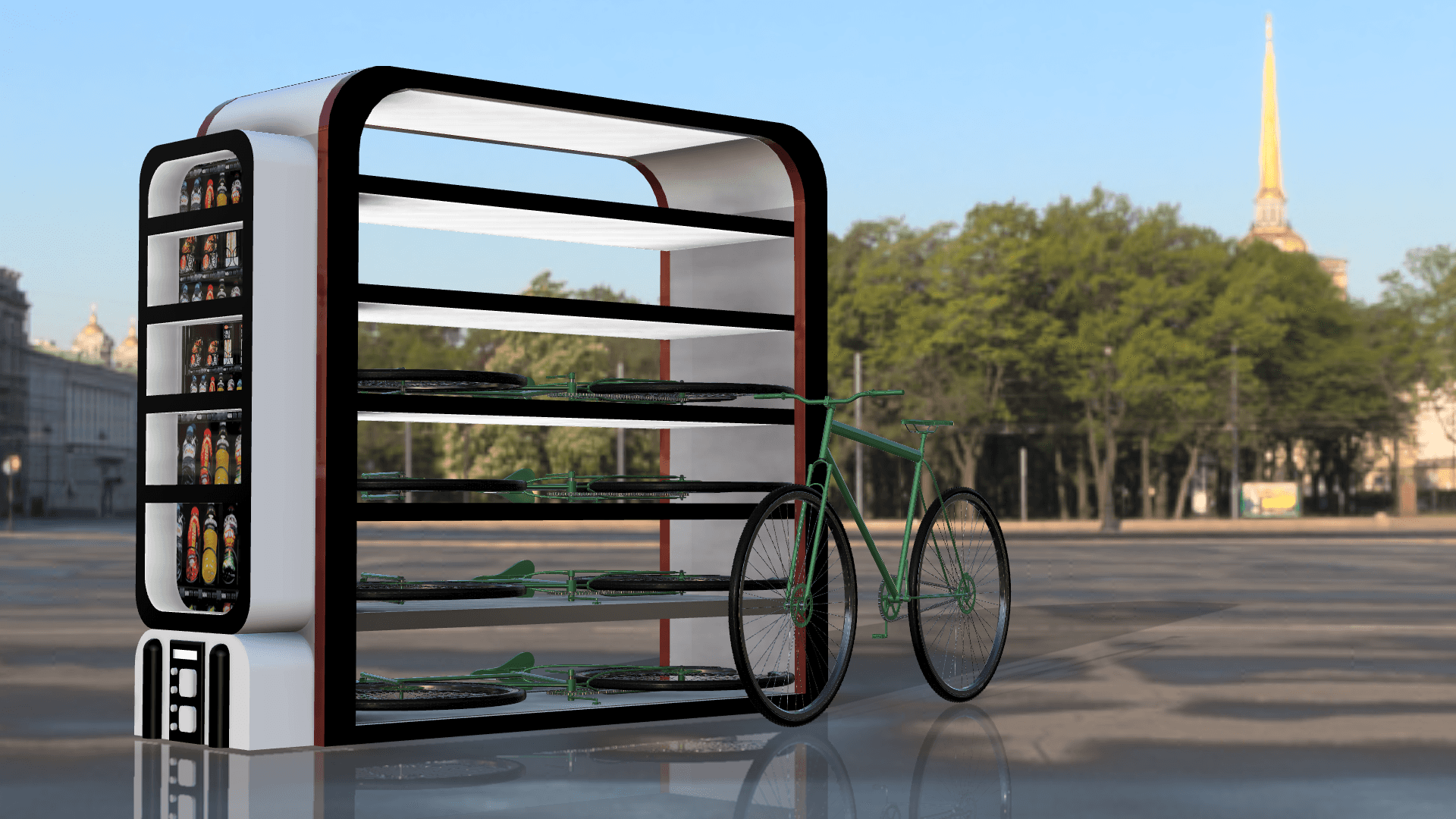

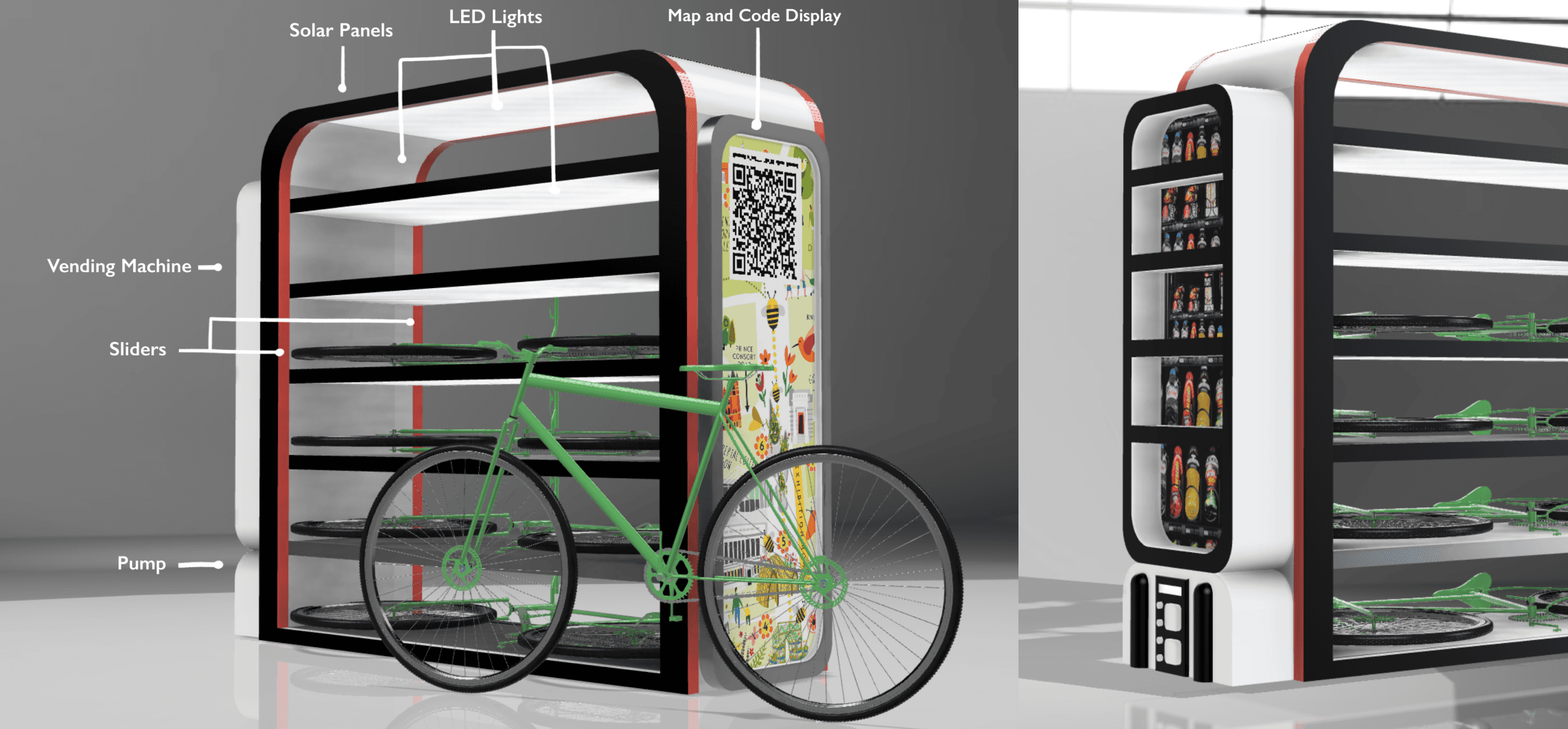

Rounded edges gives the form a sleek and elegant look. With a simple UI, the Cycle Bar is easy to use and hassle free. Additional features like vending machine, an air pump and a map display makes it practical. Space optimised, functional, and aesthetic, the Cycle Bar is the perfect bicycle parking spot for a safe and convenient parking!

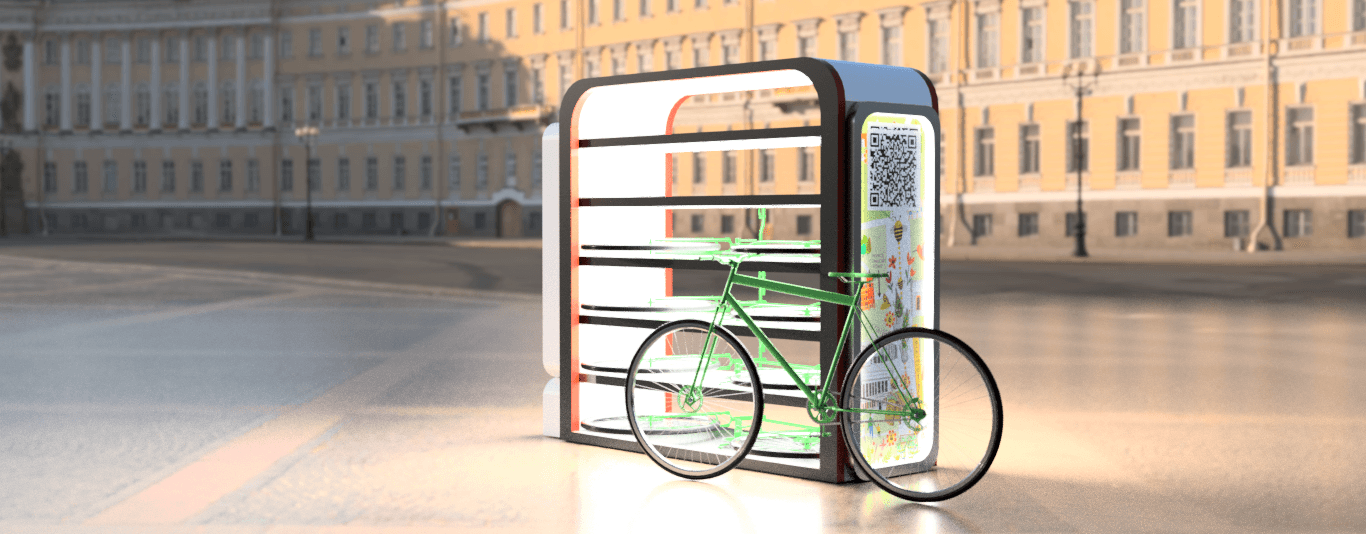

An innovative design that optimizes space, provides security, and ensures aesthetics.
CycleBar
The cycle stand of the future.
This work has been published in the ‘Alt Mo Digest - Bengaluru Bicycle Parking Edition, 2023.’
